Product Description

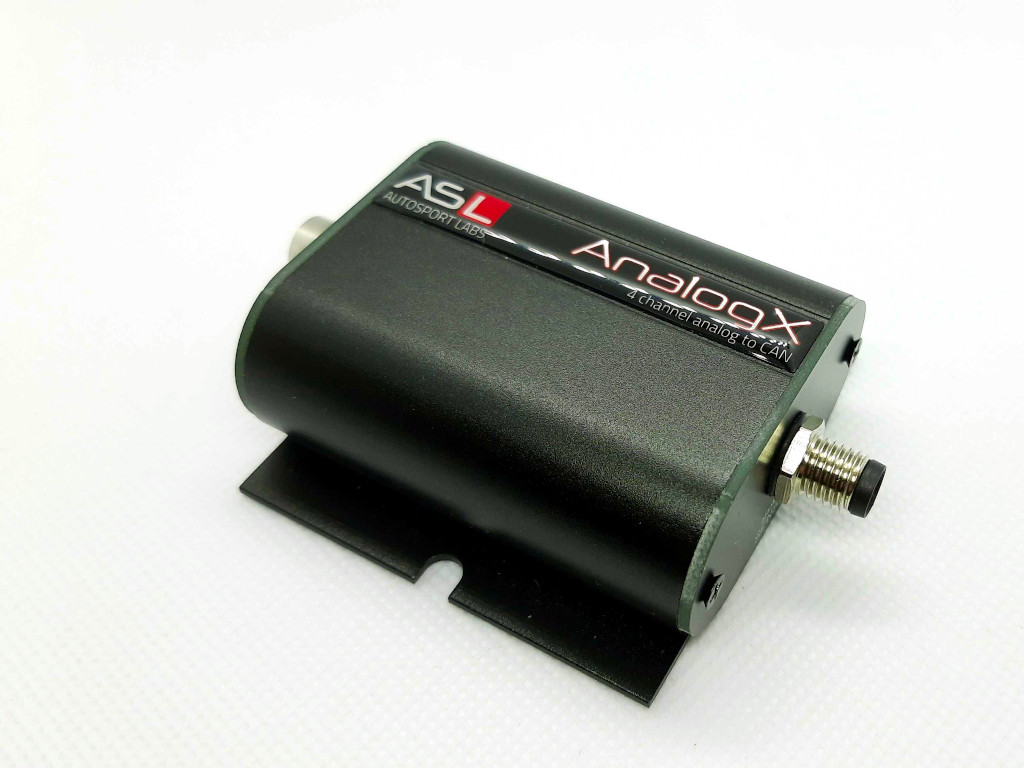

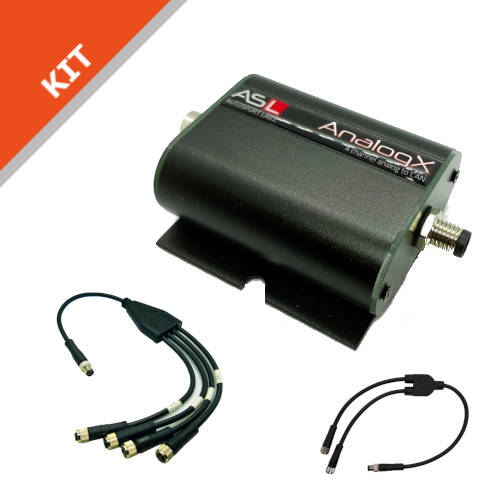

We’ve bundled the AnalogX2 4 Channel Analog to CAN Interface with the necessary wiring harnesses in order to connect it to a Plug and Play RaceCapture/Track Mk3.
Before installation, open up the AnalogX and set the DIP switch configuration to enable CAN termination. Follow the Autosport Labs AnalogX installation guide.

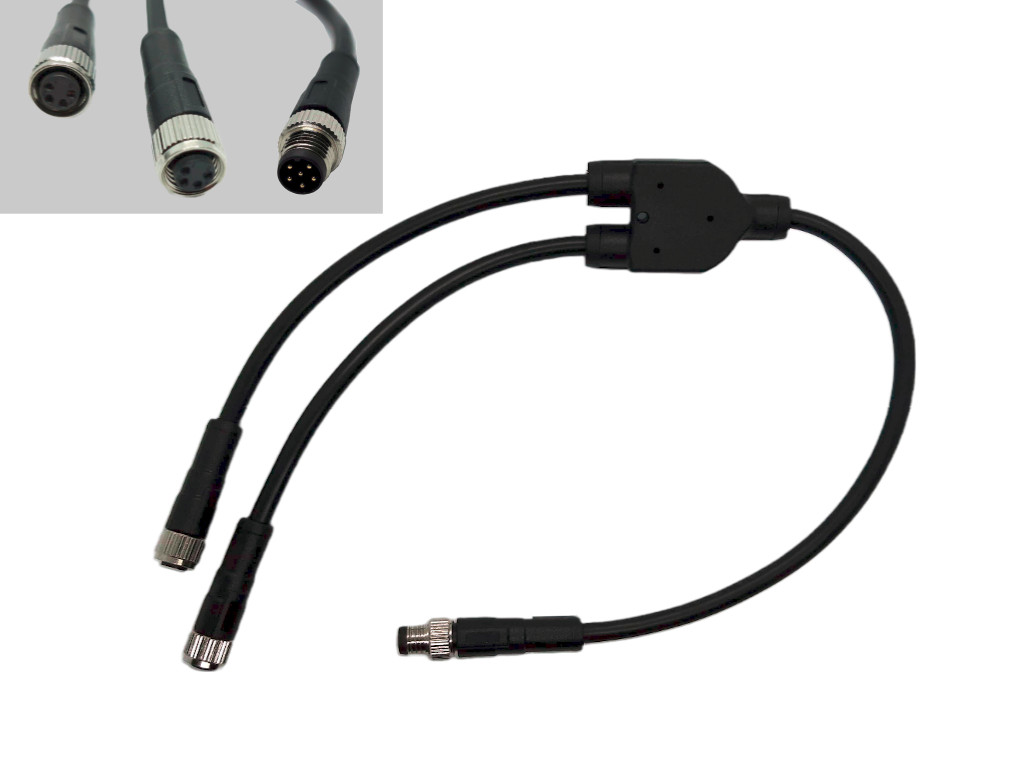

Connect the included Autosport Labs CAN1/CAN2 dual CAN Splitter cable into the CAN 1 + CAN 2 M8 port on the logger, then plug the split lead labelled ‘A’ into the AnalogX.
Connect the included Autosport Labs 4 Channel Analog / Digital Sensor Splitter into the other end of the AnalogX, and then plug in your sensors or extension cables. Custom sensors can be connected using the Autosport Labs M8 3P Male to Bare Wire Sensor Pigtail.
You can extend the entire 4 channel splitter using an Autosport Labs 4 Channel Sensor Extension Cable.
We carry the following analog sensors:
- Autosport Labs Plug and Play -40 to 150C Linear Temperature Sensor
- Autosport Labs Plug and Play 150 psi / 10 bar Pressure Sensor
- Autosport Labs Plug and Play 2175 psi / 150 bar Pressure Sensor
- Autosport Labs M8 3P Male to Bare Wire Sensor Pigtail for connecting custom sensors
You can extend individual sensors using the Autosport Labs Sensor Extension Cable.
Please note that individual sensors, sensor extension cables, and pigtails are not included in this kit and must be ordered separately.
