Product Description

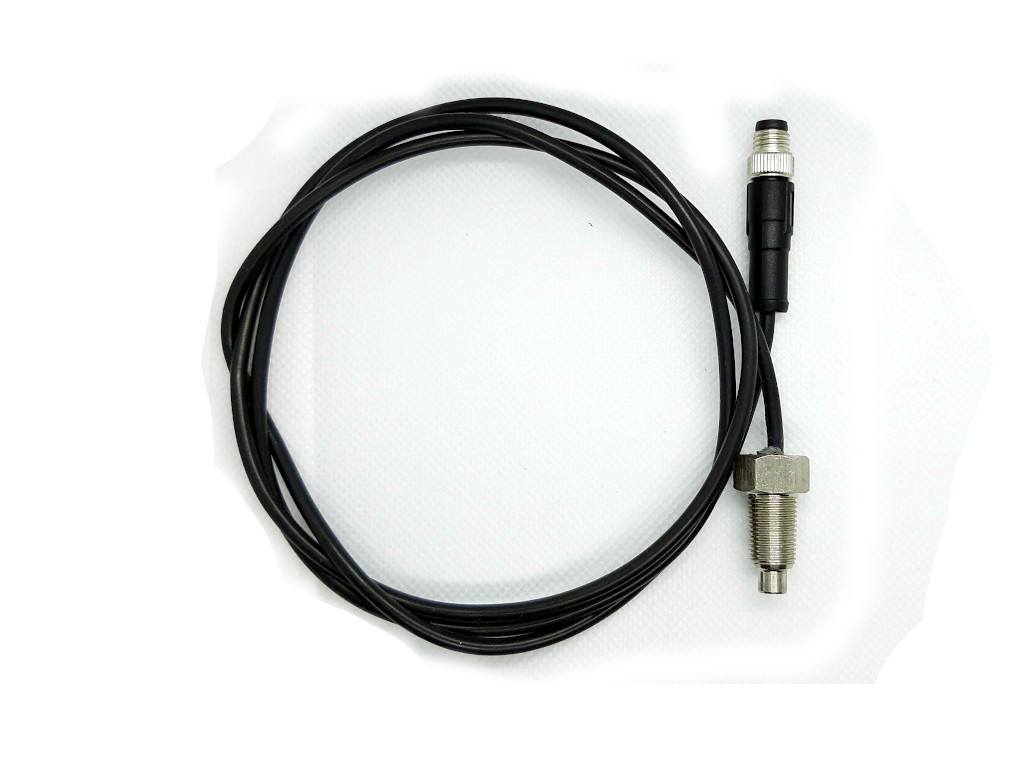

The Autosport Labs Linear Temperature Sensor offers a linear response of 10mv/C for easy calibration with a simple conversion formula. This sensor is suitable for fluids such as engine oil and coolant.
The M8 connector plugs in to Racecapture Plug and Play Ecosystem M8 female sensor sockets, as terminated on the 4 Channel Analog / Digital Sensor Splitter.
This temperature sensor is configured in the RaceCapture app by selecting it from a dropdown list of available sensor types.
Connector Types
M8 male 3 pin
Mechanical Features
- 1 Meter cable length

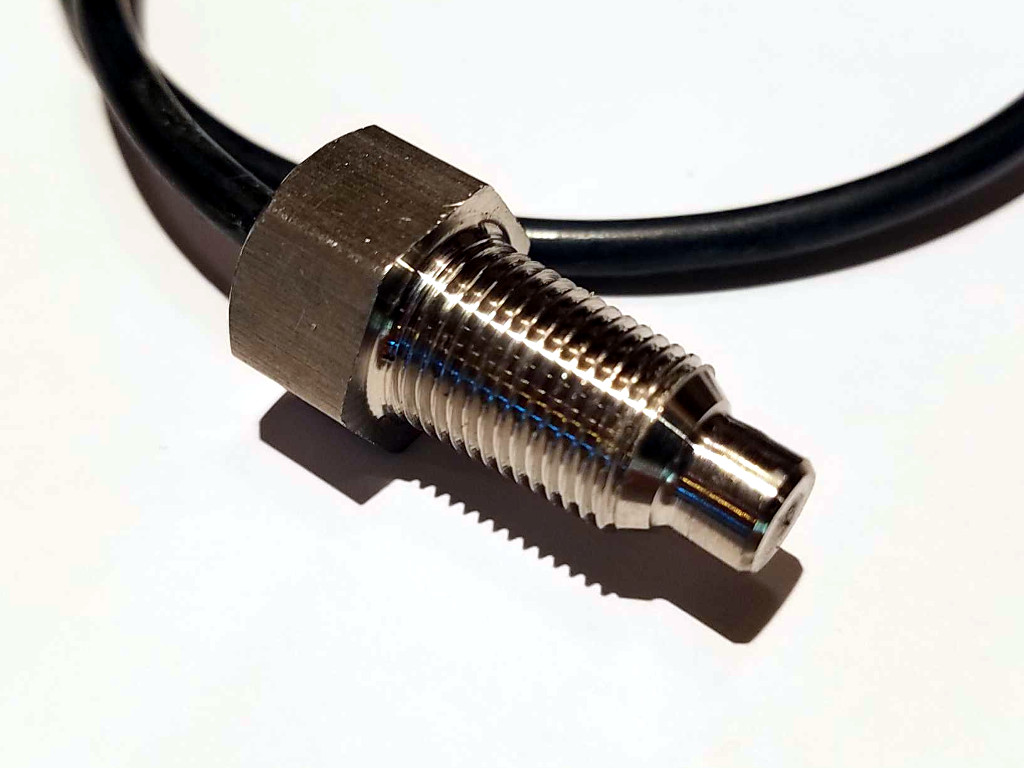

- 1/8″ NPT fitting
- Body: Stainless Steel
- 13mm (1/2″) hex head
Electrical Features
- Voltage supply: 3-5V
- Pull-up resistor: None (Active element)
- Operational temperature range: -40 to 150C
- Calibration: Linear response 10mv/C; 0.5V at 0 degrees C
- M8 Pinout:
- Pin 4 : signal
- Pin 1: Ground
- Pin 3: 5V
- Wiring color codes:
- Green: Ground
- Red: 3-5V
- Yellow: Signal Output
