Product Description

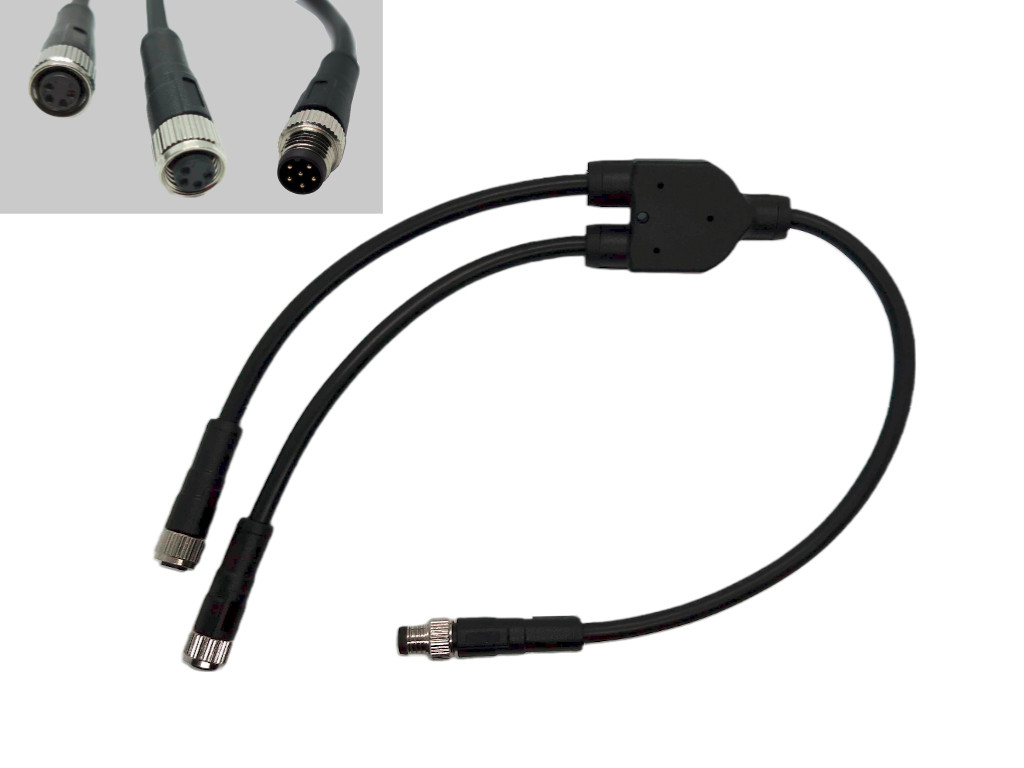

The Autosport Labs CAN1/CAN2 dual CAN Splitter is used to access individual CAN bus lines on RaceCapture data loggers that support the Autosport Labs Plug and Play Ecosystem.
This interface cable splits two CAN bus networks into individual CAN1 and CAN2 connections. Plugs into the common CAN1/CAN2 expansion port for:
Connector Types
M8 6P male to dual M8 4P female
Features
- Rugged M8 6P Male for connection to the main system
- Dual M8 4P female connections for CAN1 and CAN2;
- Supports up to 1 MB data rate
Each of the CAN connections can be connected to a CAN bus extension cable, a Power+CAN bus pigtail, or directly into one of our CAN bus enabled sensors and accessories.
Limited power (max 1A @12v total) is passed into the combined CAN1/CAN2 branches for powering attached CAN devices. For connecting multiple/high-powered CAN devices, we recommend a combination of the Powered 8 port dual CAN bus hub and Dual CAN bus link cable.
Notes
- CAN1 connected to branch “A”
- CAN2 connected to branch “B”
