Product Description

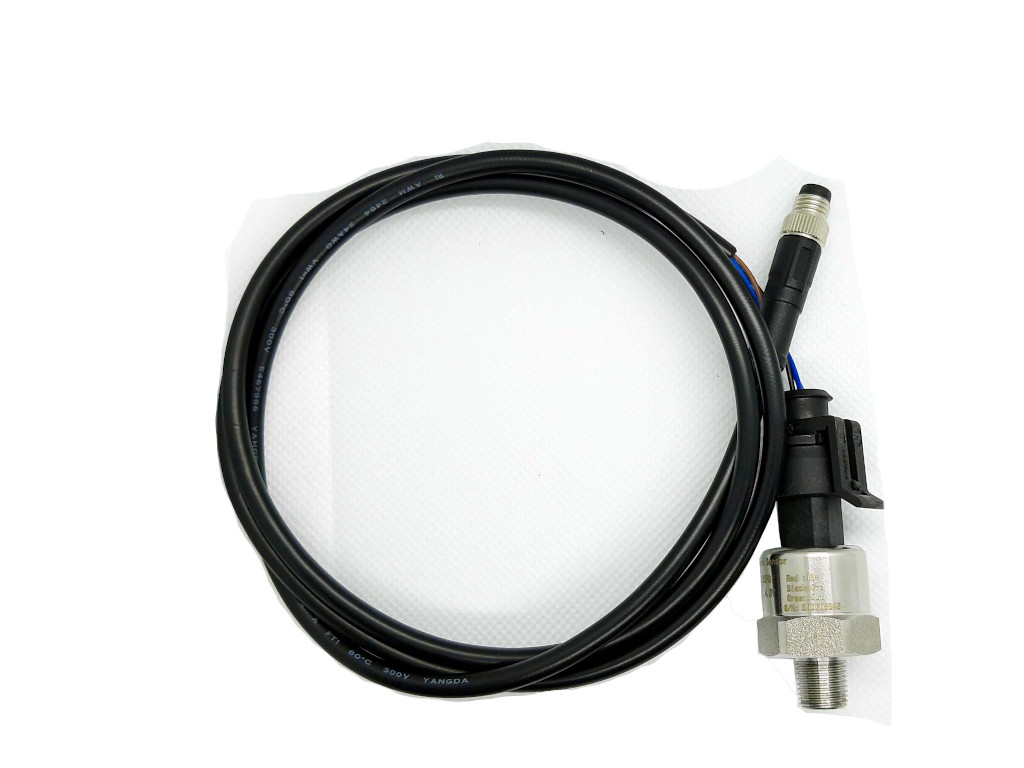

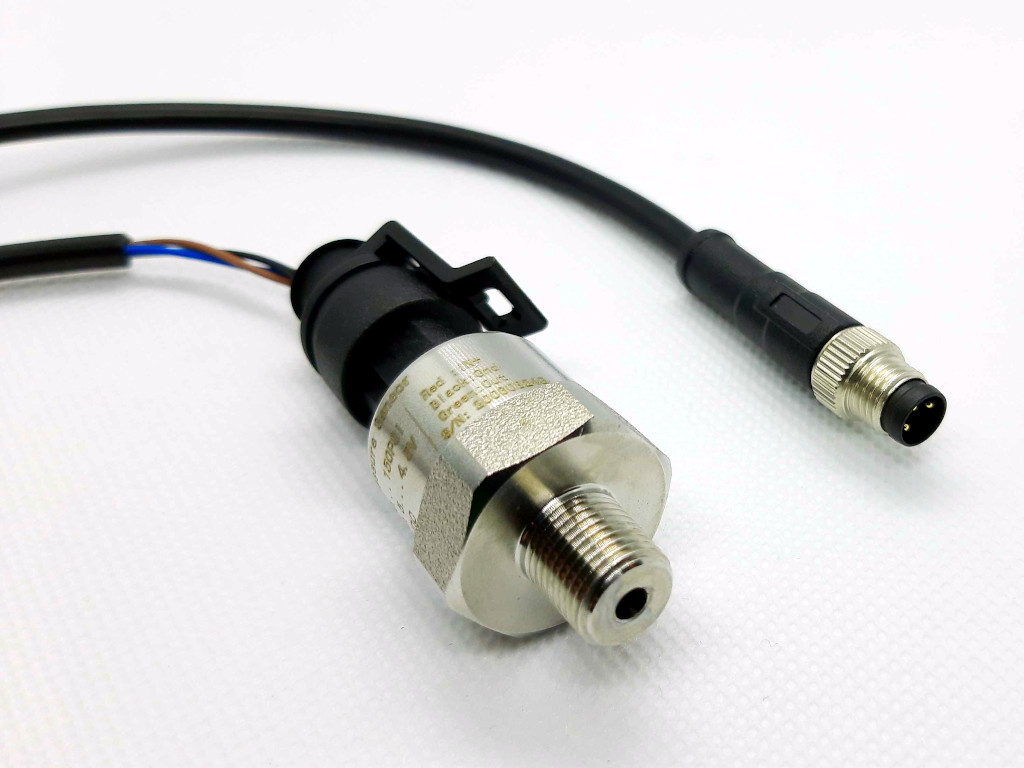

10 bar / 150 PSI pressure sensor with M8 plug and play harness connector, suitable for measuring fuel and oil pressures.
The M8 connector plugs in to Racecapture Plug and Play Ecosystem M8 female sensor sockets, as terminated on the 4 Channel Analog / Digital Sensor Splitter.
This pressure sensor is configured in the RaceCapture app by selecting it from a dropdown list of available sensor types.
Connector Types
Delphi GT150 3 pin to M8 male
Features
- 2 Meter length harness
- 1/8″ NPT port
- Pinout:
- Black / Pin 4 : signal
- Brown / Pin 1: Ground
- Blue / Pin 3: 5V
