Product Description
Expands 4 analog / digital channels to flying leads that can be adapter to your custom sensors. Can be directly connected to an AnalogX, or to a RaceCapture/Pro via an 8 Channel Splitter.
Connector Types

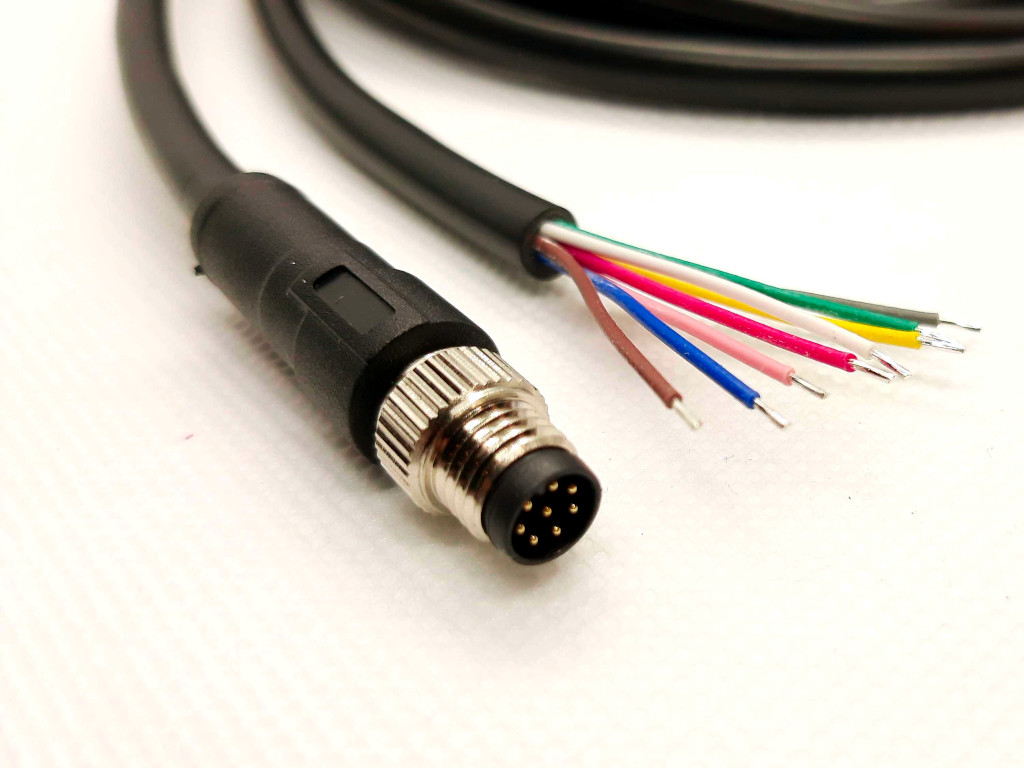

M8 8P male to 4x flying sensor lead pairs
Features
- M8 8P Male connection for AnalogX or GPIOx
- Commonly used to connect AnalogX or GPIOx to 4 individual analog / digital sensors for an installation with custom / existing sensors.
Pinout
- White / Pin 1 : Analog/Digital 1
- Yellow / Pin 2 : Analog/Digital 2
- Gray / Pin 3 : Analog/Digital 4
- Red / Pin 4 : 5v reference
- Brown / Pin 5 : Ground
- Pink / Pin 6 : 5v reference
- Blue / Pin 7 : Analog/Digital 3
- Green / Pin 8 : Ground
