Product Description
TireX is available as a pre-configured 4 zone kit (left-front, right-front, left-rear, right-rear) as well as single sensors (because hey, it’s racing and things happen). Replacement single sensors will need to be configured for the appropriate corner.
- 4 zone kit SKU ASL_TIREX_4PACK
- Single sensor SKU ASL_TIREX_SINGLE
To connect 4 sensors to your plug-and-play RaceCapture logger, make sure to include the TireX 4 Corner Plug and Play Harness.
The Most Advanced Thermal Imaging Sensor for Motorsports

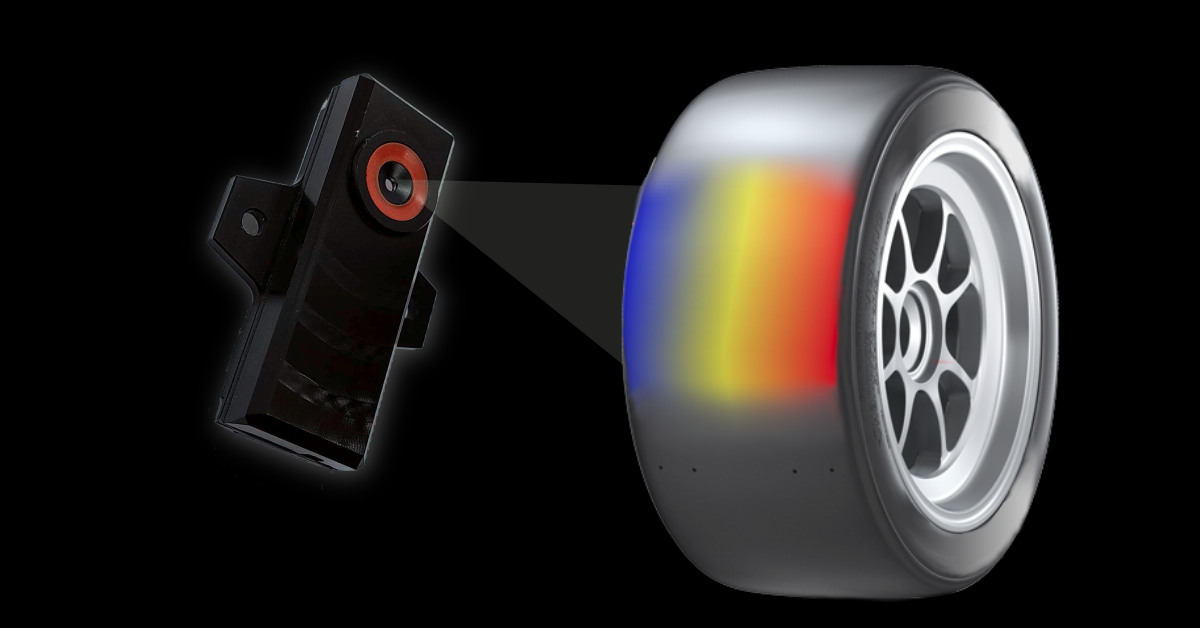

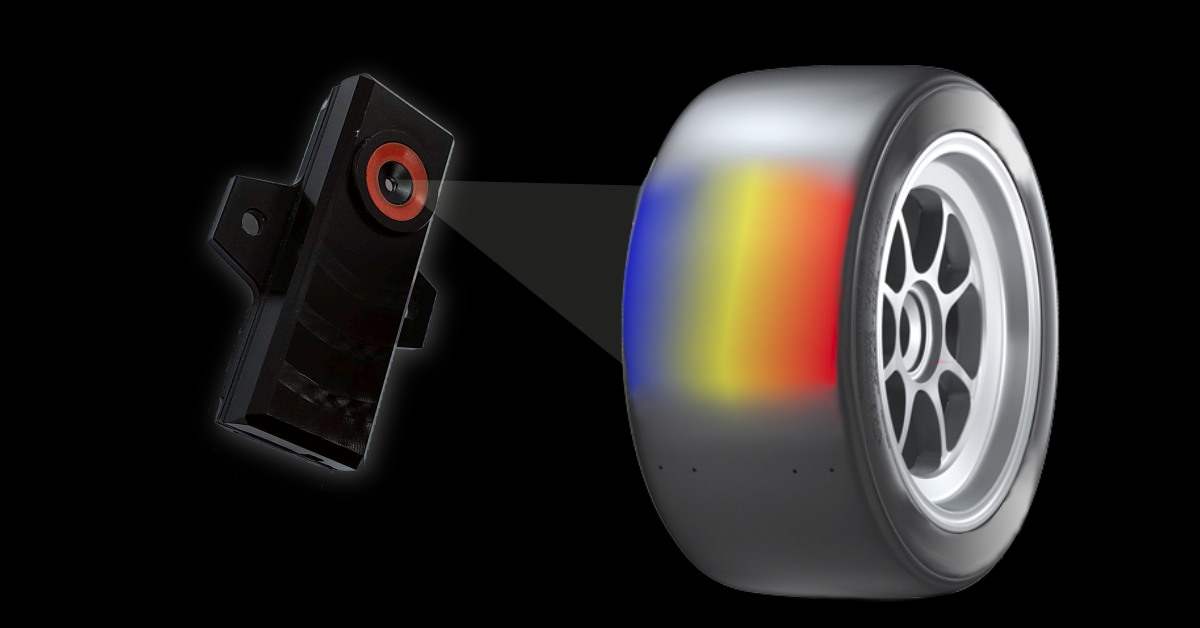

TireX is a thermal imaging sensor that visualizes how your tires are working, in real time. Use it to tune your suspension for maximum grip and balance.
Next-generation technology
TireX uses the most advanced sensor technology in its class. Not only does it have superior accuracy and thermal compensation than current sensors, it’s thermal array design allows applications beyond measuring tire temperatures. There’s no sensor like TireX at any price!
TireX will show you how evenly your tires are working, helping you identify where to make changes to your suspension. Maximize your tire’s grip to get faster lap times and win races.
Features at a glance:
- 110 degree field of view (FOV) simultaneously reads multiple zones across your tire.
- Up to 16 temperature zones supported
- You can select 1, 2, 4, 8, or 16 temperature zones per tire, enabling fine resolution when you need it – up to 64 channels of data with 16 zones and 4 corners!

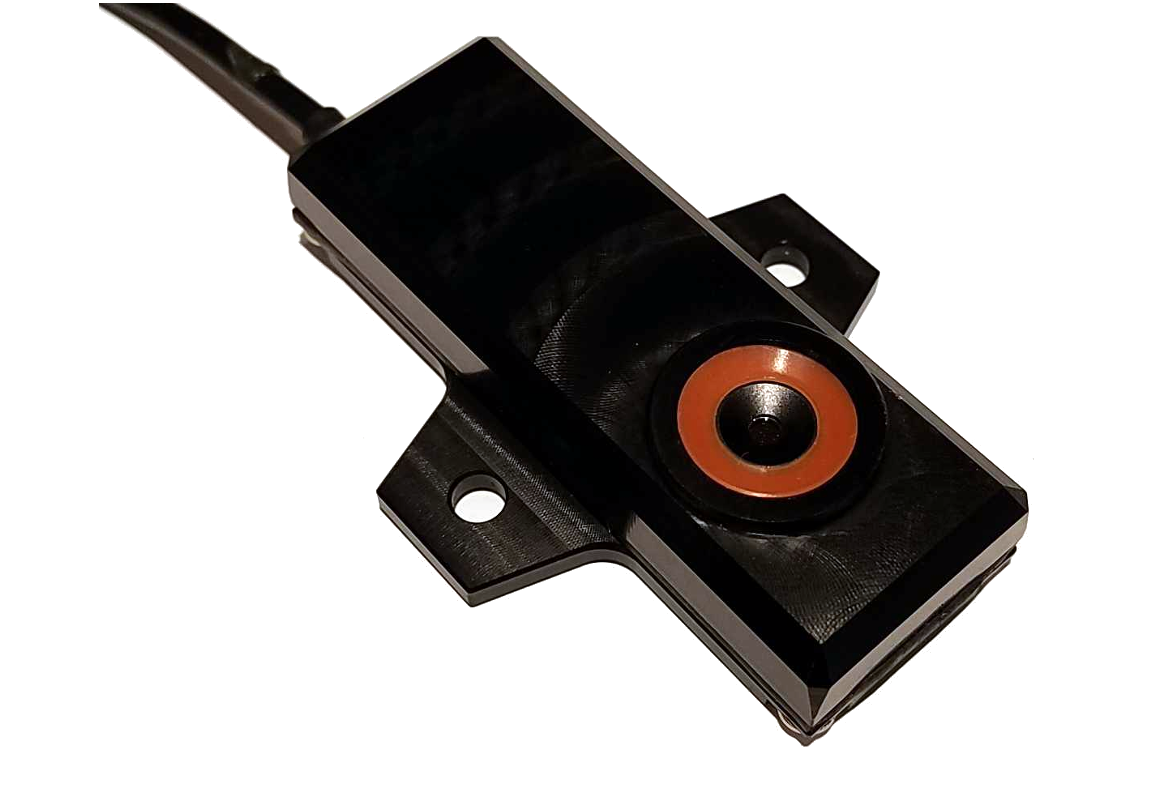

Rugged and compact
TireX was carefully designed to keep a low profile mounting in mind, and specifically for mounting above the front tires to minimize steering-induced reading errors.

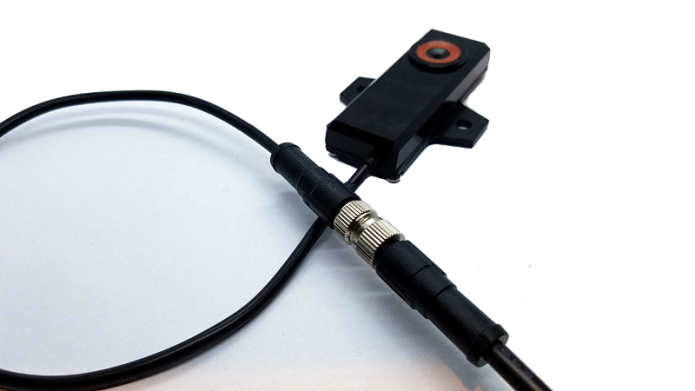

High quality connectors

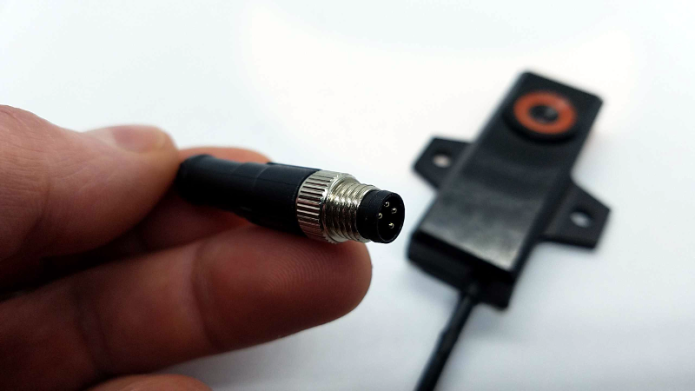

TireX comes with a rugged and compact industrial M8 connector for integrating with your wiring harness.
