Product Description

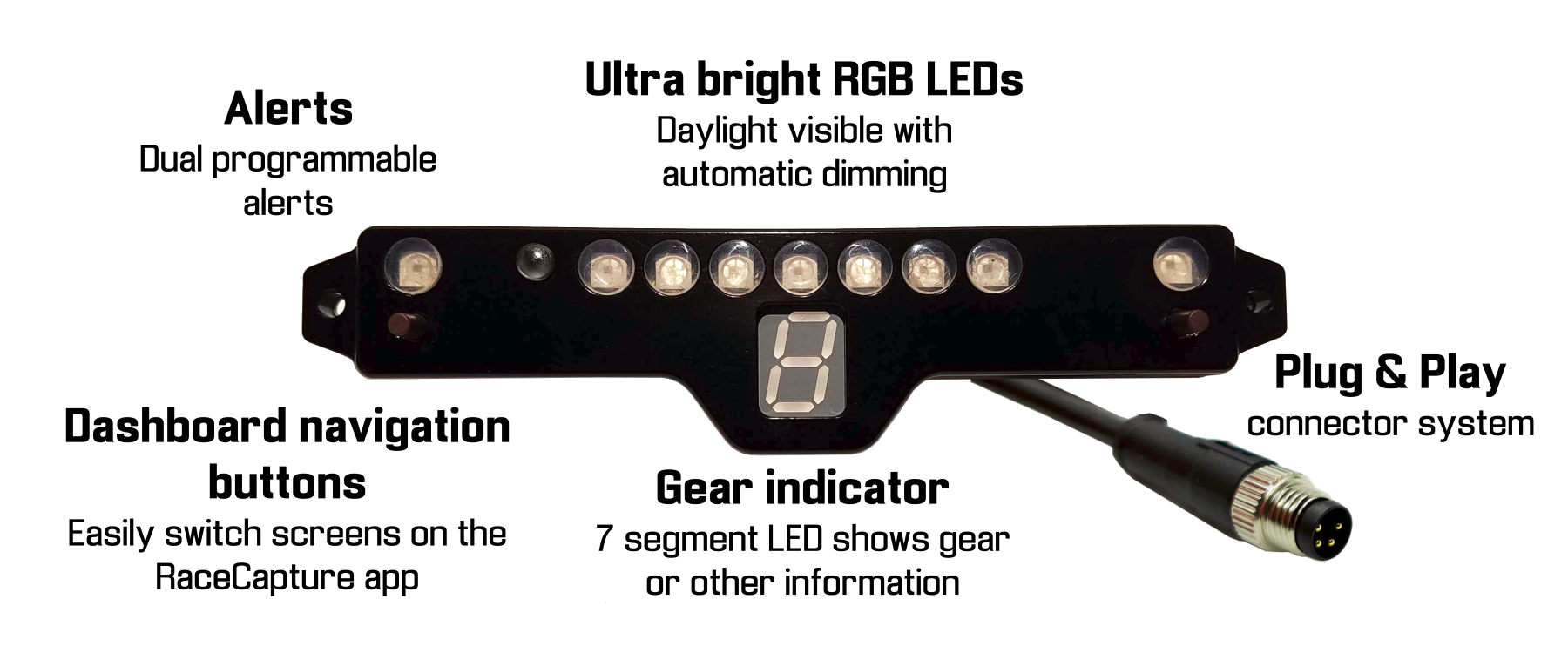

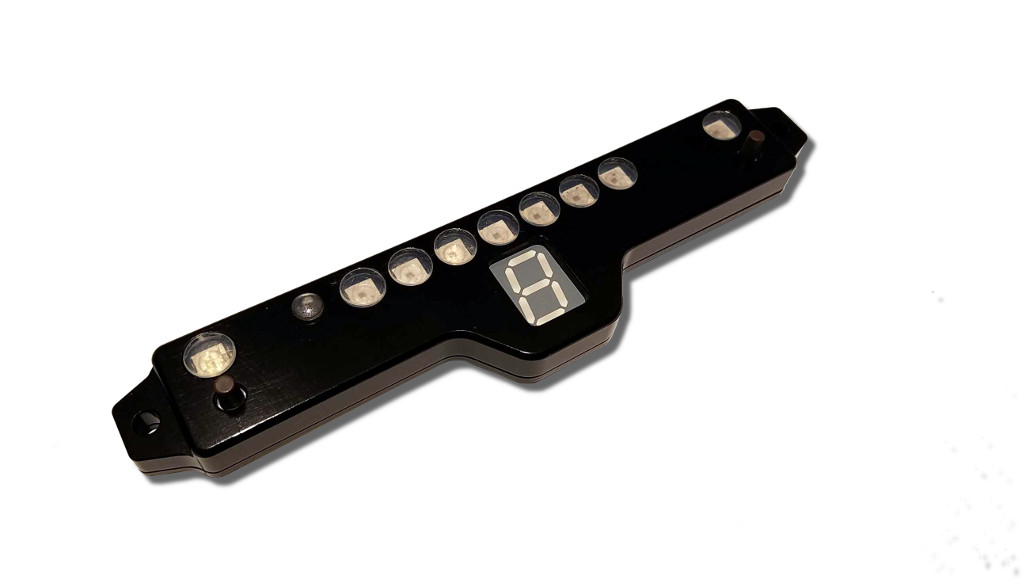

The ShiftX3 is a multi-function, configurable display designed to work with your RaceCapture data logger.
This version of the ShiftX3 is equipped with a M8 connector which allows it to plug into any RaceCapture logger that supported the Autosport Labs Plug and Play Ecosystem.
Fully Customizable RGB Sequential Display for Your RaceCapture System

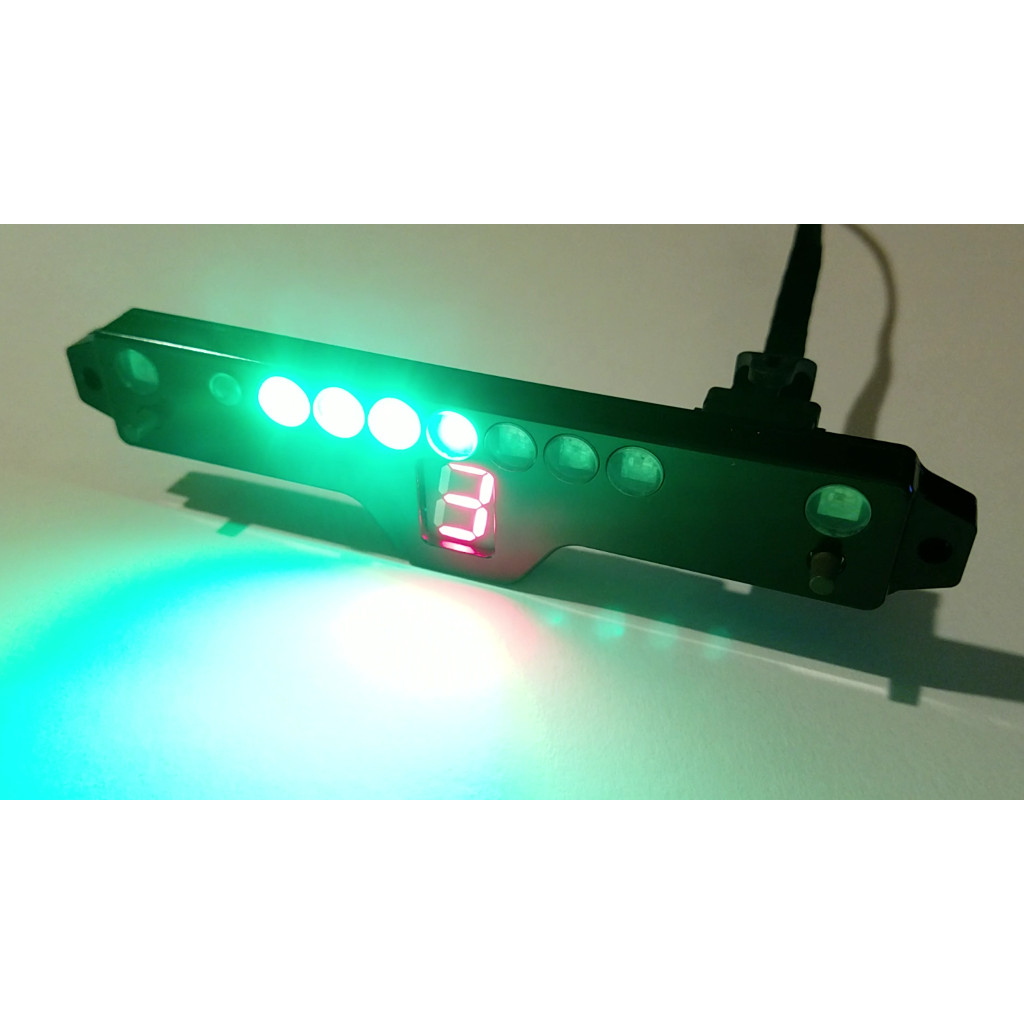

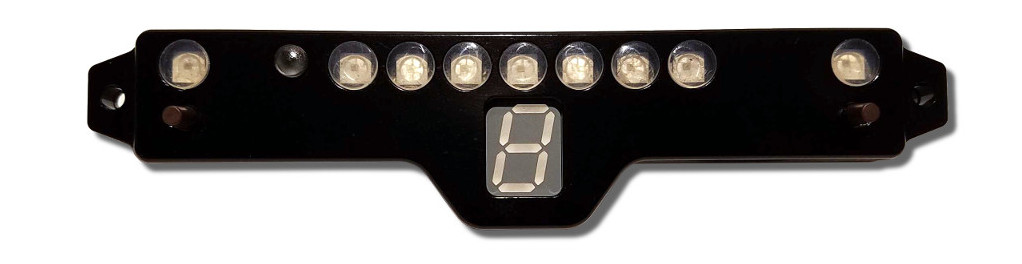

ShiftX3 has 9 super-bright RGB LEDs in a compact, surface-mountable package, with plug and play wiring.
Compatible with:
- RaceCapture/Pro MK4
- RaceCapture/Track MK3
Configurable 7 Segment Display
You can setup ShiftX3 to show your current gear, or have it show any RaceCapture channel value you’d like. Use it as a sequential shift light and never miss a shift.

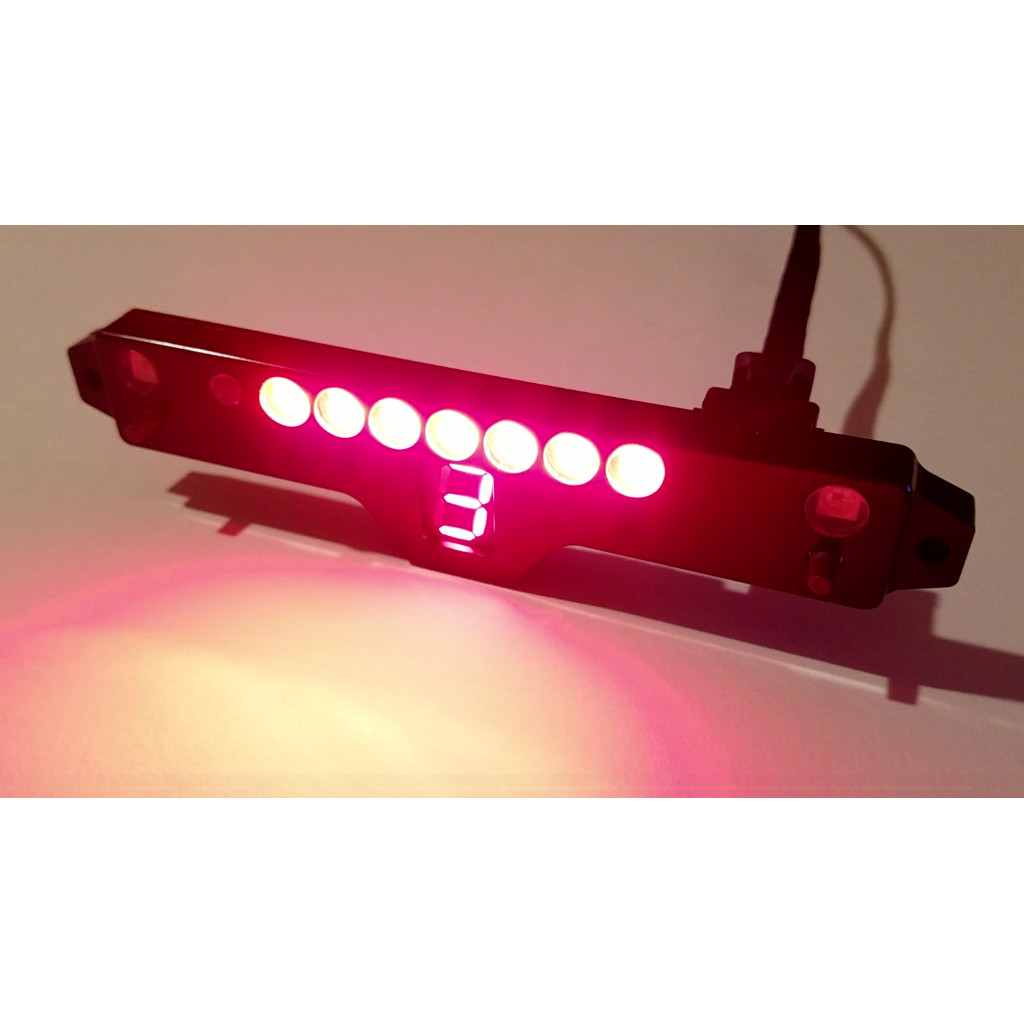

- Set up a shift light to show any color, with up to 5 RPM thresholds – even customize it to flash.
- Use it to visualize your predictive lap times and shave seconds off your best lap.
- Use the center gauge to visualize your current lap time performance against the session’s best time. Green bar means you’re beating the best lap.
Use it for sensor alerts and save your engine - The two flanking LEDs can be individually controlled to light up at sensor thresholds. Up to 5 trigger thresholds can select any color and variable flash rate.
Left and Right Navigation Hard Buttons
ShiftX3 includes navigation buttons that will scroll your RaceCapture dashboard screen left and right – perfect for gloved operation.
Auto-Dimming
An on-board photosensor will auto-dim the display, a necessity for nighttime racing.
Easy to Install and Configure
With the Plug and Play wiring system, it’s easy to connect the ShiftX3 to the CAN network on your RaceCapture logger. Check out the Autosport Labs Wiki for full installation guide.
An Important Note About Wiring
The ShiftX3 connection cable is only 1m in length, so in most installations you will need an extension cable in order to connect it to your CAN network, as well as a CAN splitters depending on your configurations. The wiring harnesses that you may need are as follows:
- Autosport Labs CAN1/CAN2 dual CAN Splitter. Used to access an individual CAN Bus on your RaceCapture logger.
- Autosport Labs CAN Splitter / Y Adapter. Use these to chain CAN devices together on a single bus, in place of a Powered CAN Bus Hub. Note that power draw is limited.
- 1 x Autosport Labs Inline 120 ohm CAN Terminator. Required to terminate CAN 2 bus chains if your equipment does not have a built-in terminator. The ShiftX3 does NOT ship with an internal CAN terminator enabled. There is a way to enable it that requires jumping 2 circuit board pads, but we recommend using the inline terminator instead.
- Autosport Labs CAN Extension Cable. Used to extend to CAN devices when necessary.
What’s In The Kit
Every ShiftX3 includes:
- ShiftX3
- Mounting screws
